NUTOUCH HELIA Direct Flow Reverse Osmosis (R.O) Water System
The NUTOUCH HELIA R.O system is a cutting-edge 7-stage reverse osmosis water filtration unit designed for both efficiency and convenience. Its compact design makes it ideal for spaces where room is limited, while its advanced filtration technology ensures the removal of up to 99% of impurities, including dissolved salts, microorganisms, and organic matter.
The system is environmentally friendly, offering high water production efficiency with minimal waste. Key benefits include improved water taste and odor, cost-effectiveness compared to bottled water, and a user-friendly interface for easy operation and maintenance.
HELIA has a production of 2.4L of pure water per minute (800GPD membrane), minimum rejection (2:1), easy maintenance and advanced technology. Includes smart LED faucet with information indicators & internal water leak detector.
As it does not require a storage tank, it has a compact design with small dimensions, which hardly takes up any space under the sink. It also represents a great advance with respect to traditional systems, as it has LED lights and audible warnings that inform about the water quality, cartridge changes, leaks and production cuts. An intelligent and very simple osmosis, since its 2 exclusive cartridges are removed and replaced with a simple click. This means extremely simple maintenance and easy installation.
The system can remove up to ~99 % of the contaminants from water using one of the world’s best water treating technology. Due to its 7-stage filtration system, it easily removes a significant amount of chlorine and chlorine derivatives, odor and bad taste, viruses and bacteria and many other harmful substances such as heavy metal ions, total dissolved solids (TDS) from tap water making it tasty, fresh and vital.
*The quality of the purified water produced depends on water pressure, temperature and level of contamination as well.
ADDITIONAL INFO
FILTER TECHNOLOGY:

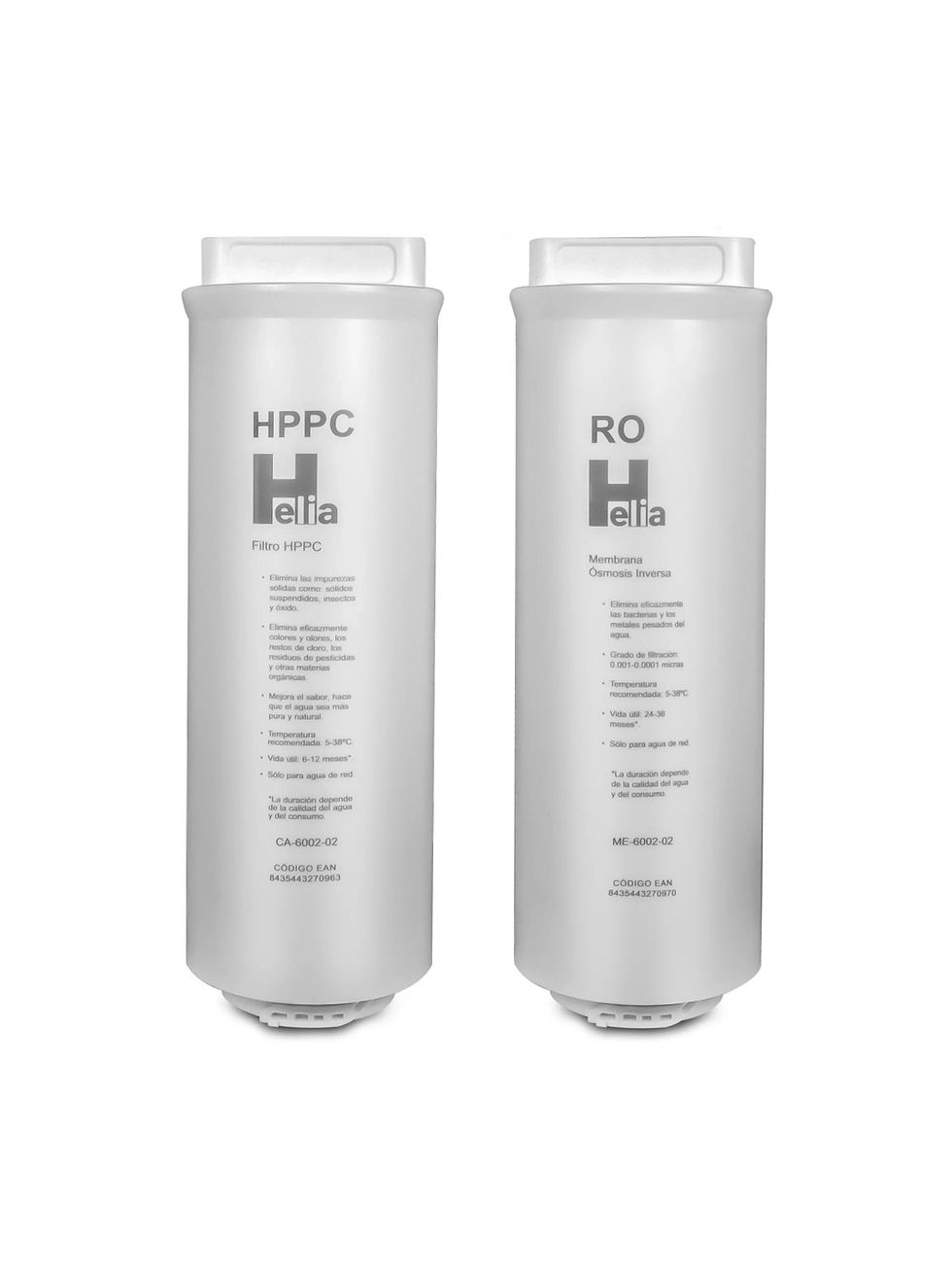

1) 3IN1 Cartridge (HPPC) - PREFILTER + ACTIVATED CARBON + POST CARBON = Blocks Sediment, removes Chlorine & Organic Compounds. Replace /12months.
2) 800GPD REVERSE OSMOSIS ELEMENT – Purifies Water from 97% of Dissolved Impurities. Replace /24-36 months.
SMART INDICATION OF FILTER STATUS: An indication on the front panel of the water system or the faucet color reminds of the need to change the replacement filters.
INDICATION OF PURIFIED WATER QUALITY: The color indication on the front panel of the filter warns about the deterioration of water quality and the need to change the replacement filters.
AUTOMATIC MEMBRANE CLEANING: The membrane runs a self-rinse mode after 30 minutes of TOTAL usage or 12H in STANDBY MODE.
LEAKAGE PROTECTION: The filter automatically shuts off the inlet water if there are any water leaks inside the water system.
Pressure Switches: The system is equipped with pressure switches. The low pressure switch shuts off the pump when there is no inlet water or its pressure is too low. The high pressure switch shuts off the pump when the filtered water faucet is turned off.
Booster pump: it offers the advantages of favorable wastewater-treated water ratio (about 2:1), operation in places with lower water pressure (smaller settlements, homesteads, 10th floor) and offers faster tank filling.
Faucet: Designer smart faucet for filtered water is included and usually mounted on the sink deck or countertop for dispensing the clean, filtered water from the filtered water outlet of the main R.O. unit.
Drain Saddle: Fits a standard 1.5” diameter drain pipe to drain the waste water from the drain outlet of the pump box.
KEY FEATURES
- Instant Purified Water - No tank required
- Elegant & robust shiny plastic cover.
- For Drinking, Cooking, Ice Machine, Coffee
- High Filtration Power: Production of 2.4 liters of pure water water per minute.
- Digital Faucet with LED indicator.
- Ultra Low Water Rejection: Provides 2 litre of pure water for 1 litres of rejected water (2:1).
- Quick service of cartridges in 5 seconds.
- Automatic maintenance warning via LED front panel.
- Smart internal water leak detector (electronic water stop function).
- Smart flushing: Different types of automatic self-cleaning (first use, accumulated operation, cartridge change, etc.).
BENEFITS
Benefits of the R.O water system
- 7-stage water filtration system.
- Its reverse osmosis system works with high quality R.O 800GPD membrane to produce the best possible water quality.
- Due to its small size, it can be easily placed under the counter.
- Its modern faucet can fit in any kitchen.
- Easy to install, but you can always ask for the help of our specialist.
- It is easy to maintain and allows you to easily change the filters by yourself (click-on).
- It can work with low pressure (2 bar)
Advantages of direct flow water treatment systems over tank equipment:
- it works without a tank, so there is no stagnant water and no need for a UV lamp.
- water-saving, the ratio of wastewater to treated water reaches 2:1, making it economical.
- it is more economical and easier to maintain, saving you money and time.
- since there is no tank, there is no risk of the tank becoming contaminated.
Advantages of booster pump operation:
- favorable wastewater-treated water ratio (about 2:1).
- operation in places with lower water pressure (smaller settlements, homesteads, 10th floor).
- higher purified water flow production.
TECHNICAL DATA
FLOW CAPACITY: 2.4L/min
DIMENSIONS (DxHxW): 40 x 41 x 14 cm
TUBE CONNECTIONS: INLET 3/8", OUTLET 1/4", DRAIN: 1/4".
MAX. INLET (PPM): 1000
INLET WATER TEMP: 5 to 35º C
INLET PRESSURE: 1-4 Bar
POWER SUPPLY: 240V/24V/5A
WARRANTY
2 years worldwide limited warranty (+ local regulations if applicable).
Product must be installed only by trained service professionals. Only original replacement parts, filter cartridges and accessories made by manufacturer may be used.
